Jetson Nano Developer Kit 사양 & 크기 정보

Technical Specifications

GPU128-core Maxwell
CPUQuad-core ARM A57 @ 1.43 GHz
Memory4 GB 64-bit LPDDR4 25.6 GB/s
StoragemicroSD (not included)
Video Encode4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
Video Decode4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)
Camera1x MIPI CSI-2 DPHY lanes
ConnectivityGigabit Ethernet, M.2 Key E
DisplayHDMI 2.0 and eDP 1.4
USB4x USB 3.0, USB 2.0 Micro-B
OthersGPIO, I2C, I2S, SPI, UART
Mechanical100 mm x 80 mm x 29 mm

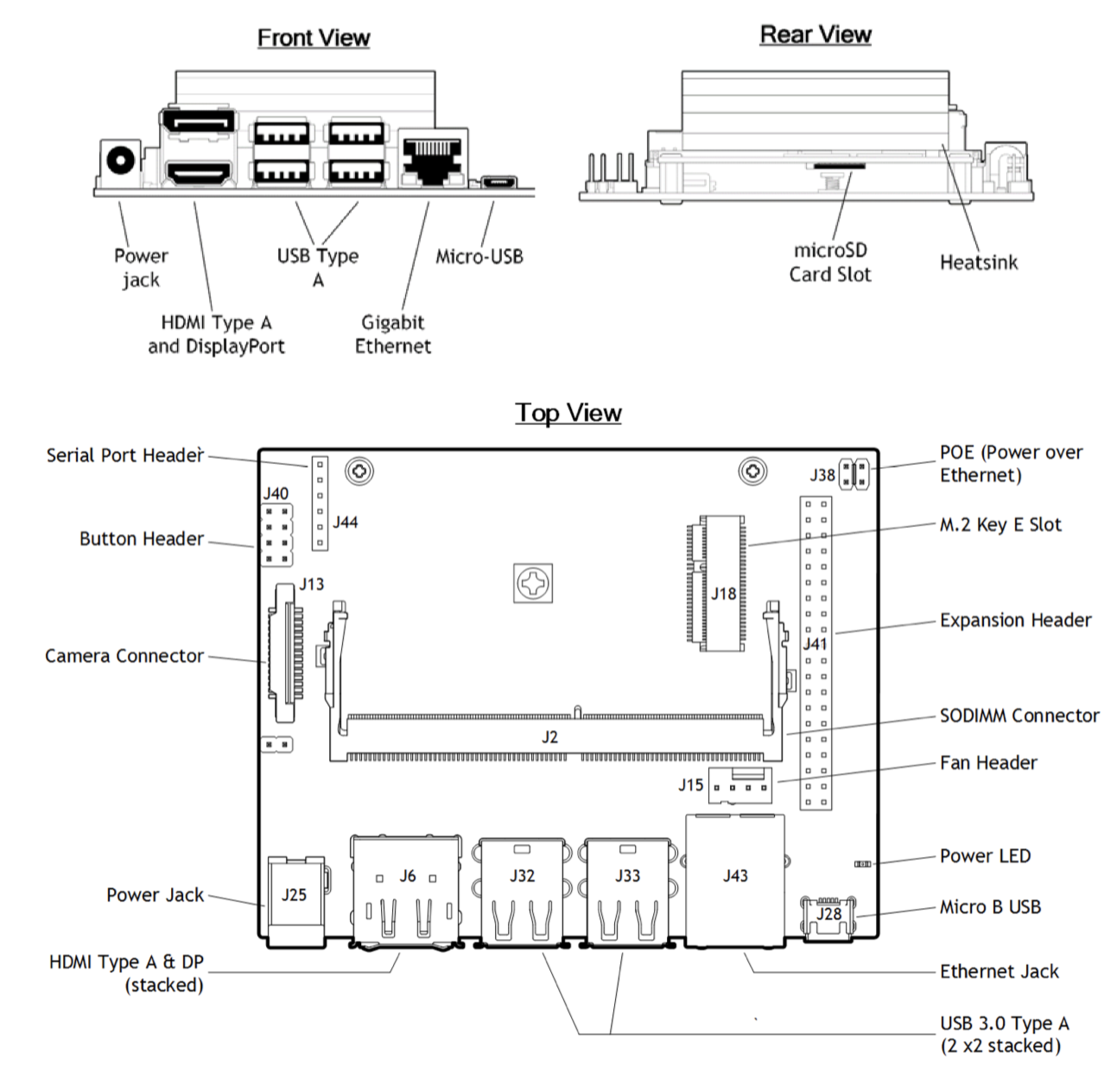

보드 자체의 크기는 실제 측정해보면 100mm x 79mm 이다. 나사 홀의 위치는 다음과 같다.
